Mention "5G", you can think of
"The Internet of Everything" four words.
Driverless cars, food delivery robots,
The rapid development of VR/AR
……
It is foreseeable that in the near future
5G will be everywhere
And advanced and reliable connections
Is one of the key factors to achieve 5G communication.
How to achieve
What about high-speed, reliable connections?
WAIN is grateful
Communication products to help!
WAIN has a diversified communication modular connector product portfolio, whether it is industrial robot communication data reception, high-definition mobile TV, or orbital network data transmission and other industrial network communication scenarios, WAIN communication products always have a match.
USB connector Safe and power-saving, widely used, universal connector with USB interface, only when power is needed, it can connect the circuit. Small to the home charger, keyboard, mouse, large to industrial electrical and electronic equipment applications, it is indispensable.
WAIN has two kinds of USB2.0 and USB3.0 modules, USB3.0 has ten times the data bandwidth of USB2.0, up to 5Gb/s(480MB/s), the two are compatible with each other, and can be selected according to the actual application needs.
As an industrial standard connector, D-sub connector plays an important role in a number of industries, and it is the most diverse and widely used input/output connector.

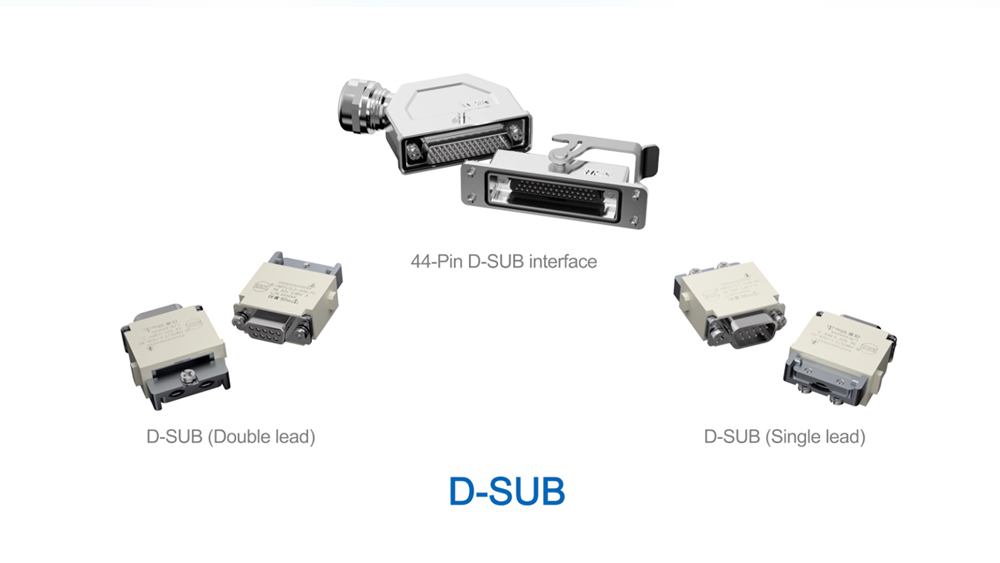

The WAIN D-Sub module ADAPTS to the 9-core D-SUB interface and can transmit analog and digital signals, with two lead and single lead options.
In addition to the modular D-Sub module, WAIN also tailor-made the 44-core D-SUB series connector to fit the EMC shielded metal housing. The D-Sub interface is used with the heavy-duty housing and is secured with a lock for easy operation.

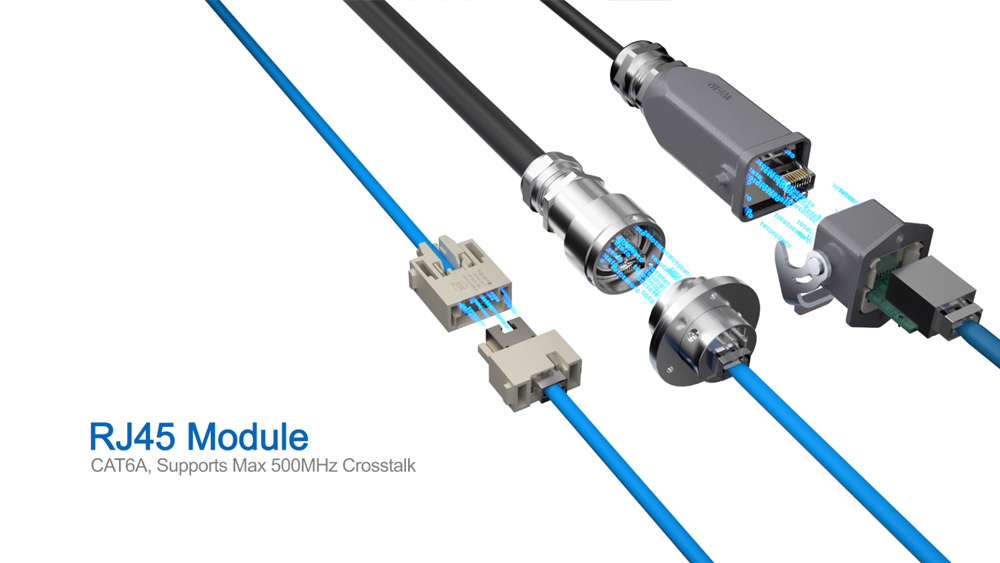

RJ45 connectors are most commonly used to connect one Internet-connected device to another network device. For example, connect to Ethernet devices such as servers, routers, and smart TVS. In recent years, it has been widely used in factory automation, industrial process control, Internet of Things (IoT) network equipment.
The WAIN RJ45 series has multiple performance categories: Super 5, Super 6, which can meet the requirements of different application scenarios.
Cat.6 can reach 500MHz, support ten gigabit Internet access, effectively enhance the signal, prevent signal attenuation.
Transfer rate: 10/100/1000Mbit/10Gbit/s
ADAPTS to HY series circular connectors, compatible with CAT5e RJ45 connectors on the market, and can be applied to power connectors in the Ethernet field.
This series of products is compatible with the WAIN 3A shell, and can be compatible with the CAT5e crystal head on the market. The product can be equipped with the coding pin to play the coding role. At the same time, the 3A series RJ45 CAT6A products are also under continuous development.
Optical fiber communication plays an important role in the modern telecommunication network and is also the main tool for transmitting various information in the future information society. It is widely used in communication, energy, industry, biomedicine and other fields.
>>>> HMSC-004
An optical fiber module that matches the SC plug can be freely combined with other electrical and gas modules to become an optoelectronic hybrid connector.
>>>> HASC-004
Suitable for 3A metal shell, small size, more flexible.

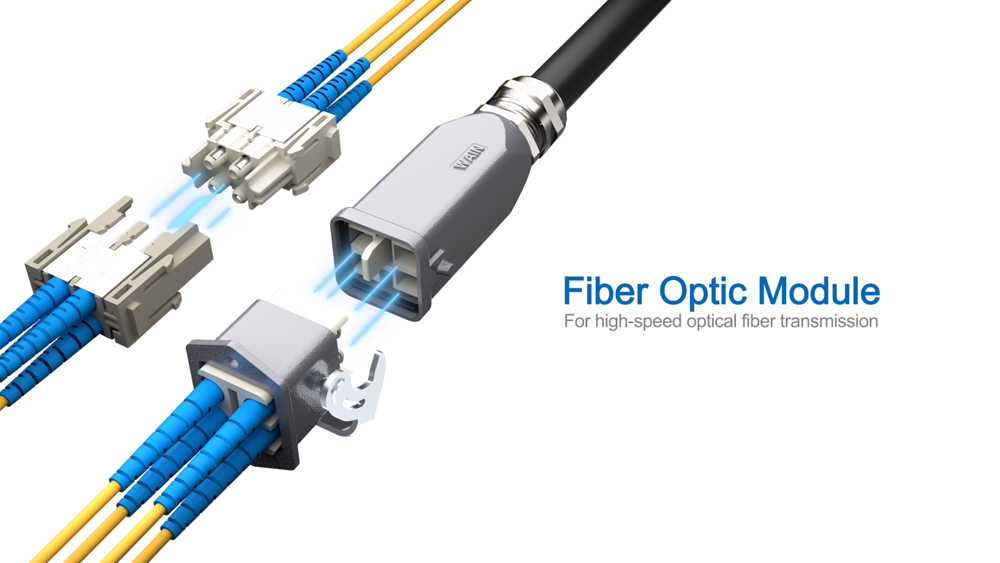

The WAIN fiber module is suitable for SC fiber jumpers. Each connector has a maximum of four SC fiber jumpers for 50/125μm or 62.5/125μm multimode fiber and 9/125μm single-mode fiber.
PS: WAIN can customize fiber jumpers of different specifications and lengths for SC, FC, ST, LC, and MTRJ.
Small, compact and high transmission - M12 X-Code series
More and more industrial applications have small and compact, and safe and reliable transmission needs, the M12 X-code connector has a great advantage in rapid installation, and its high bandwidth and high shielding connection performance is also the first choice for signal transmission.

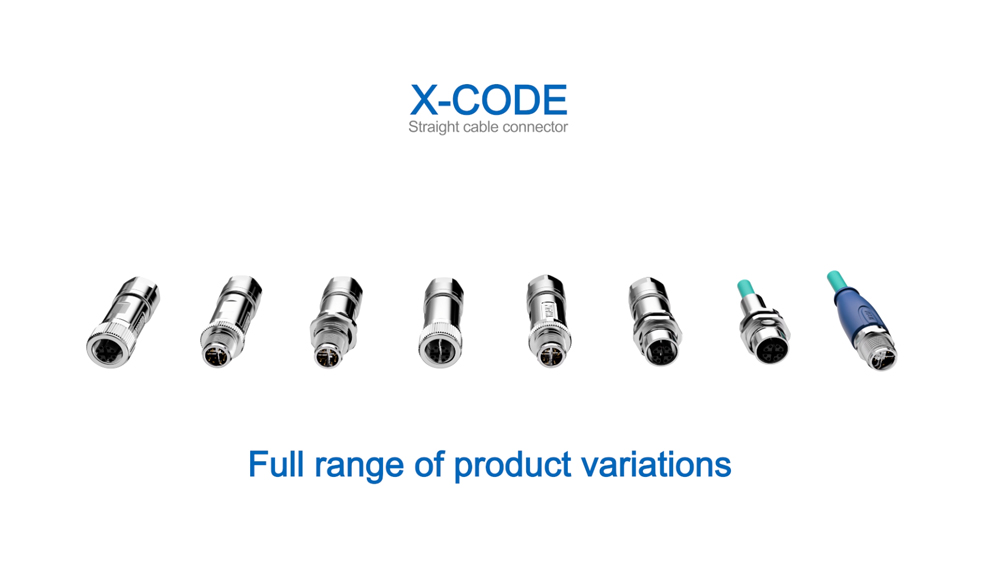

WAIN M12 X-Code series connector, straight head cable connector, can be directly applied to signal transmission, has a rich product specifications, IP67 protection class, shielding anti-interference, data transmission speed up to 10Gb/s.

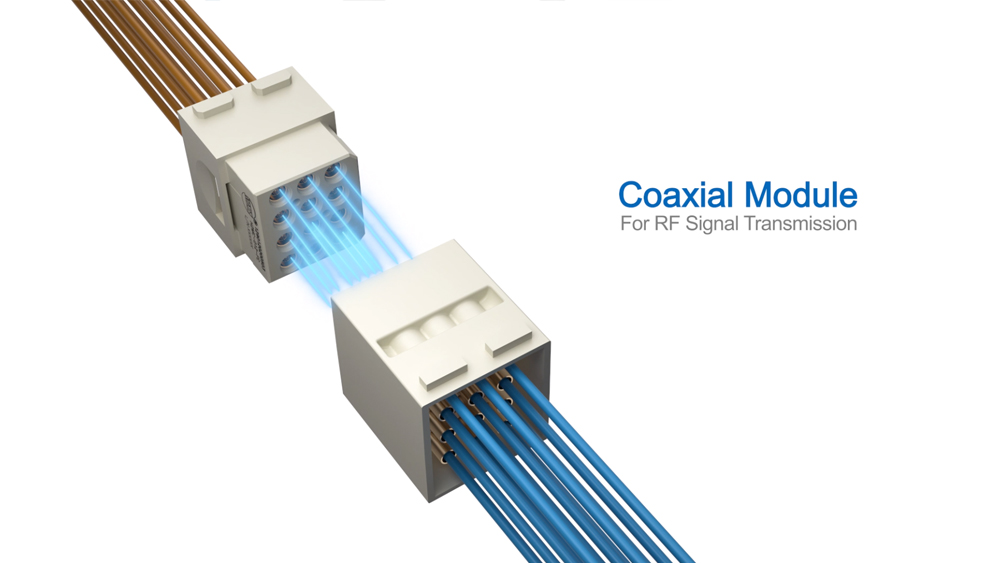

Coaxial connector, usually installed on the cable, PCB board or installed on the instrument, mainly plays the role of bridge connection, WAIN Wien coaxial module, can transmit RF signals, coaxial connector in addition to the role of bridge, both signal processing function.
tips：
Radio frequency signals It can be used to transmit speech signals, for example, radio broadcasts; It can also be used to transmit image signals, for example, television images; It can also be used to transmit various remote control signals, such as the control of artificial satellites.
In addition to the above listed WAIN communication products, we also have high-quality products such as "100 Gigabit module", "HMSB-024 module core" signal transmission products (please click the following past review for details), all modular communication products can be flexibly combined into modular connectors.
Faced with the opportunities and challenges brought by the 5G communication era,
WAIN wei er will continue exploration and innovation,
Make more sophisticated, more flexible, more reliable communication connector products.
