WAIN fast connection series products, once launched, well received. Today, the Ween quick connector family has ushered in a new member: WAIN extended quick connector, the quick connector series update includes a total of 16 HE series models.
直接型快接技術(shù)/1.jpg)
WAIN Quick-IN Quick connection technology is an innovative "patented design" independently developed by WAIN. It can make on-site wiring installation easier and maintenance easier, saving both time and cost.
The original WAIN extension-type connector uses conventional screw connection, and the wiring steps are relatively complicated. After upgrading the Quick-IN Quick connection, the wiring efficiency is more than doubled without affecting the original appearance and function, and the cost of later maintenance can also be greatly reduced.
直接型快接技術(shù)/2.gif)
The numbers of connectors: 6+PE, 10+PE, 16+PE, 24+PE
Rated current: 16A
Rated voltage: 500V
Rated pulse voltage: 6KV
Pollution level: 3
Insulation impedance: ≥1010Ω
Material: polycarbonate
Color: RAL 7032 (Light grey)
Operating temperature range: -40℃... + 125 ℃
Flame retardant rating (UL94) : V0
Insert Pin:
Connection mode: quick connection
Material: Copper alloy
Surface treatment: silver plating
Contact resistance ≤4mΩ
Wire diameter range: 0.5-4.0mm²/20-12AWG
(With tubular terminal wire diameter range: 0.14-2.5mm²/26-14AWG)
Strip length: 10±0.5mm

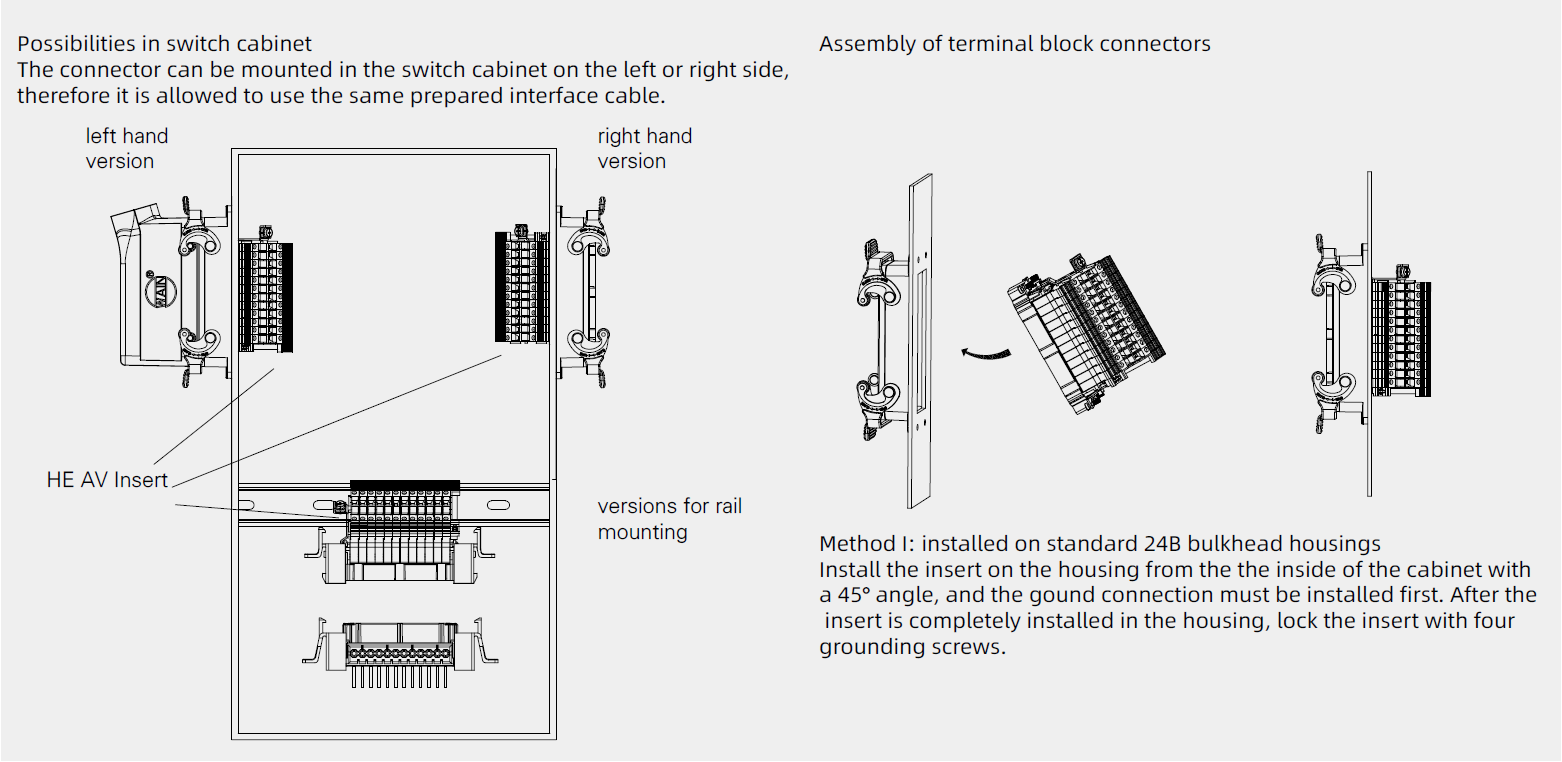

The installation method of Weien terminal block type is divided into two applications, the installation outside the cabinet and the application with a guide rail, which needs to be used with a locking element.
HEAV Assembly instruction
For specific installation methods, refer to the video of the conventional screw type terminal block connector：https://mp.weixin.qq.com/s/x-arhsX96RIiVEf112jo5g
WAIN has a variety of different series of rapid wiring products
More models are under development
It also supports custom design and production
Welcome to inquire
