WAIN Cat. 6e RJ45 fast conversion module
New product information 2024-01-15 10:00:00



In industrial scenarios, they are often faced with some harsh application environments, such as temperature, humidity, corrosion, vibration, electromagnetic interference, etc., so the connection in the industrial environment is more difficult and has higher requirements.

WAIN HM-RJ45-M /F fast conversion module, through the designer's exquisite design, in a module to achieve a good male-female conversion function, not only makes the field connection becomes simpler, the later security and stability of the maintenance also plays a vital role, more conducive to the realization of more efficient and stable Ethernet network signal connection.





Function：

01

Preset crystal head without on-site crimping assembly

The WAIN HM-RJ45-M /F fast conversion module can reduce the field installation time by up to 30%, and is more suitable for simple field connection requirements.

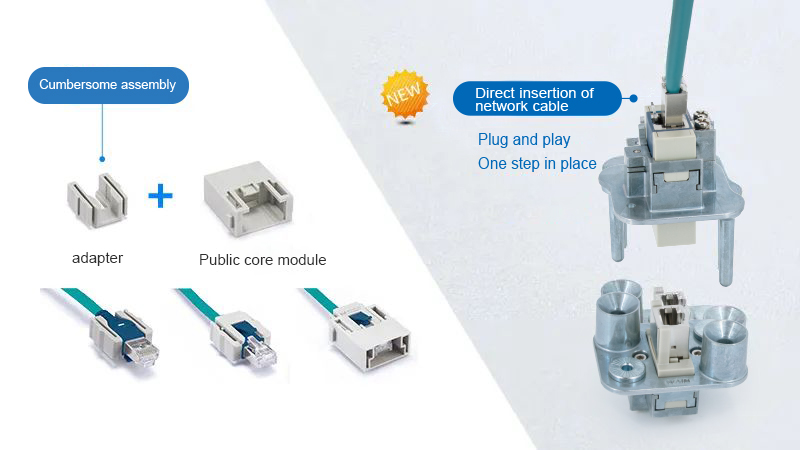

The regular RJ45 male core module, need to select an additional adapter to assemble the cable, and then with the male core module, the assembly process is complicated, the required accessories, and the new RJ45 male module, can achieve plug and play, one step in place.

02

WAIN standard framework or single module framework can be applied

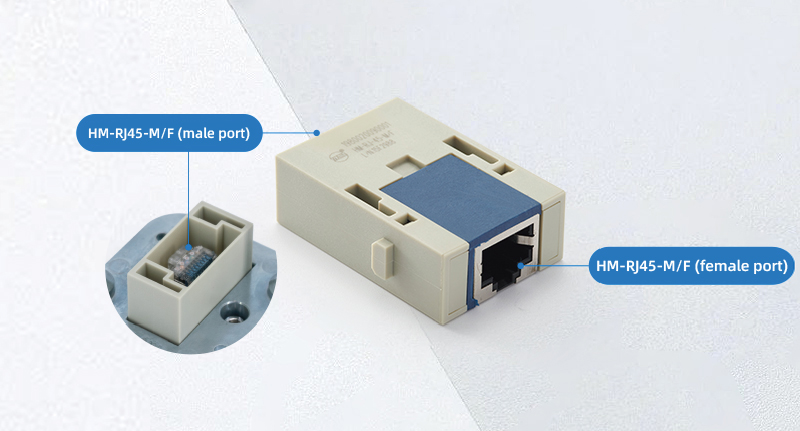

WAIN new RJ45 modules are compact, both male and female, and can be used flexibly with the WAIN standard frame, as well as WAIN new "minimum module bit" single-module metal frame, making them ideal for field installations requiring flexible connections.

       圖片

03

CAT.6e transmission performance

CAT.6e transmission performance, support high-speed data transmission, transmission rate 10/100/1000Mbit/10Gbit/s, with better anti-interference performance and stability.



Technical

the number of connector: 8

Electrical data according to EN 61984

- Rated current: 1A

- Rated voltage: 50V

- Rated pulse voltage: 0.8kV

- Pollution level: 3

Rated voltage according to UL: < 30V

Transmission characteristics: Super Class 6 up to 500 MHz

According to ISO/IEC 24 702, ISO/IEC 11 801

Transfer rate: 10/100/1000Mbit/10Gbit/s

Insulation resistance: ≥ 1010Ω

Material: polycarbonate

Operating temperature range: -40℃... + 85 ℃

Flame retardant rating according to UL 94: V0

Removable times: ≥ 500

Model: HM-RJ-M /F

Order number: 198 002 009 0001

WAIN HM-RJ45-M /F rotary master block is suitable for industrial control, industrial equipment, 5G base station, medical equipment photovoltaic, smart home, integrated control, automation equipment and other industrial application scenarios.

WAIN to adapt to market changes and innovative development to meet the needs of users, we always support product customization design and production, to provide customers with unique customized chemical industry design solutions. Welcome to WAIN!
